Rated power-frequency withstand voltage = 4Kv/ 1min
Instrument security factor = FSS or F510
Special Notes
CT's also available in 0.5S, 0.2 and 0.2S accuracy class on request
Other VA's are as per customer requirement.
Mechanical Features
Unbreakable, flame retardant, self-extinguishing
Nylon casing of grade UL 94 V2
Cores are made from high grade CRGO material
Dual coated copper wire having class of Insulation H
Nickel plated secondary terminals with plus minus screws of 0.5Nm
Integrated secondary terminal caps
Control & Potential Transformer
Newtek provides tailor made range of LT Potential & Control Transformer as per customers demand both in single phase & three phase systems, in Resin Cast/Tape Insulated/Varnish Impregnated type of Insulation
Voltage range 0 to 690V, Max VA: -10kVA. We can supply dual secondary, tap changer type PTs & Control Transformers
Available Class of PTs: 0.2,0.5,1.0,3P,6P We can provide you IVTs, RVTs on demand.
Bus Bar
Round Id(Suitable for cable)

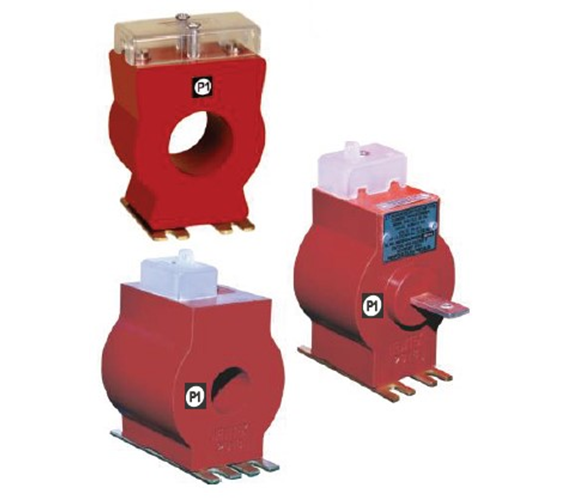

Features of Rasin Casing CT
Electrical Feature
Rated frequency = 50-60 Hz
Class of insulation = E
Rated short time thermal current lth = 60 In
Nominal surge current ldyn = 2.5 lth
Minimum 1oo kA at all window type CT's
Highest voltage for equipment Um = 0.72Kv
Rated power-frequency withstand voltage = 4Kv/ 1min
Instrument security factor = FSS or F510
Special Notes
CT's also available in 0.5S, 0.2 and 0.2S accuracy class on request
Other VA's are as per customer requirement.
Mechanical Features
Unbreakable, flame retardant, self-extinguishing
Nylon casing of grade UL 94 V2
Cores are made from high grade CRGO material
Dual coated copper wire having class of Insulation H
Nickel plated secondary terminals with plus minus screws of 0.5Nm
Integrated secondary terminal caps
Control & Potential Transformer
Newtek provides tailor made range of LT Potential & Control Transformer as per customers demand both in single phase & three phase systems, in Resin Cast/Tape Insulated/Varnish Impregnated type of Insulation
Voltage range 0 to 690V, Max VA: -10kVA. We can supply dual secondary, tap changer type PTs & Control Transformers
Available Class of PTs: 0.2,0.5,1.0,3P,6P We can provide you IVTs, RVTs on demand.
Features of Split Core CT
Wide range of system current rating
Various Mounting Options like Bus Bar Mounting(b), Base Mounting(d)
Protective Terminal Cover (a)
Terminal with self-lifting screw with dual connection facility giving access from both sides of transformers(c).
